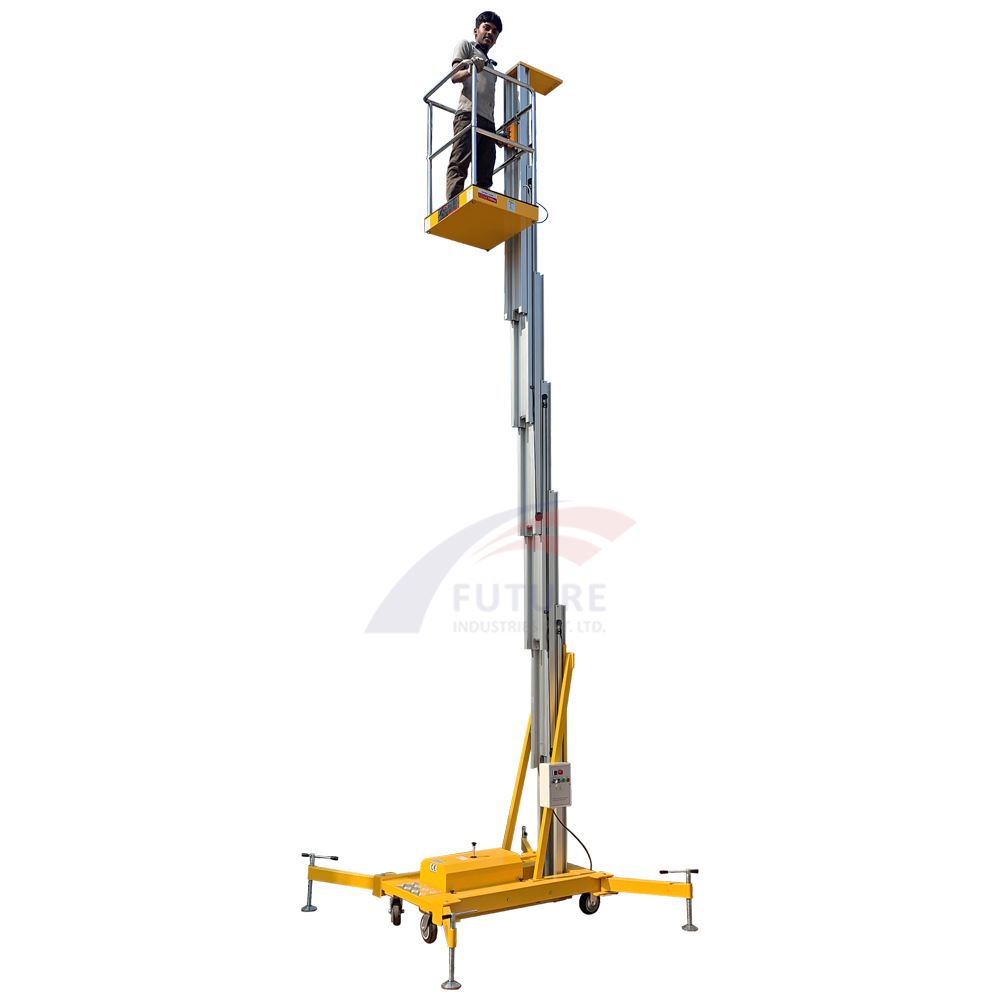

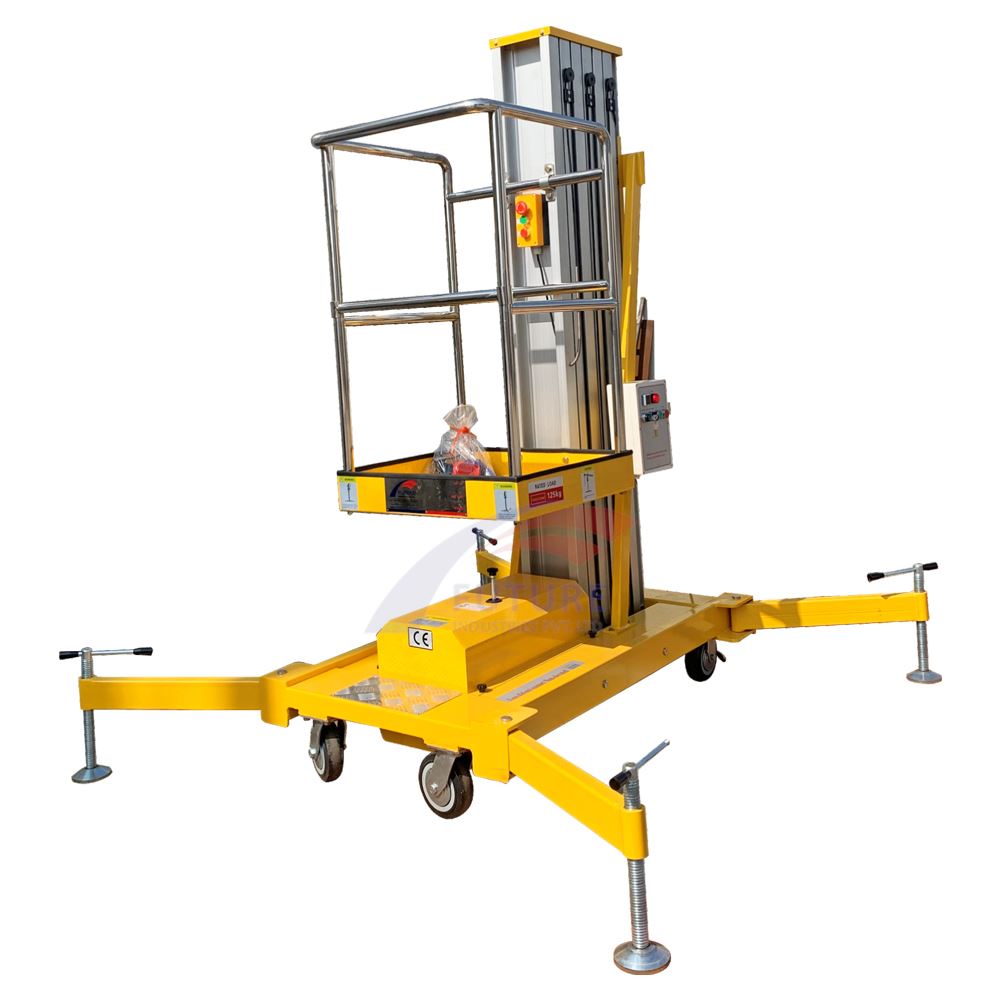

Single Mast Aerial Platform
FIPL-AWP-185
AWP is a light weight equipment used mainly for indoor high-altitude works at subway station, theater, hotel lobby, etc. for decoration, maintenance, cleaning etc.
The unique aluminum mast structure is light and easy to move, and the support system combined with multiple safety protection system ensures the safety and stability of the platform. We can control the lifting from the platforms above as well as from panel below.

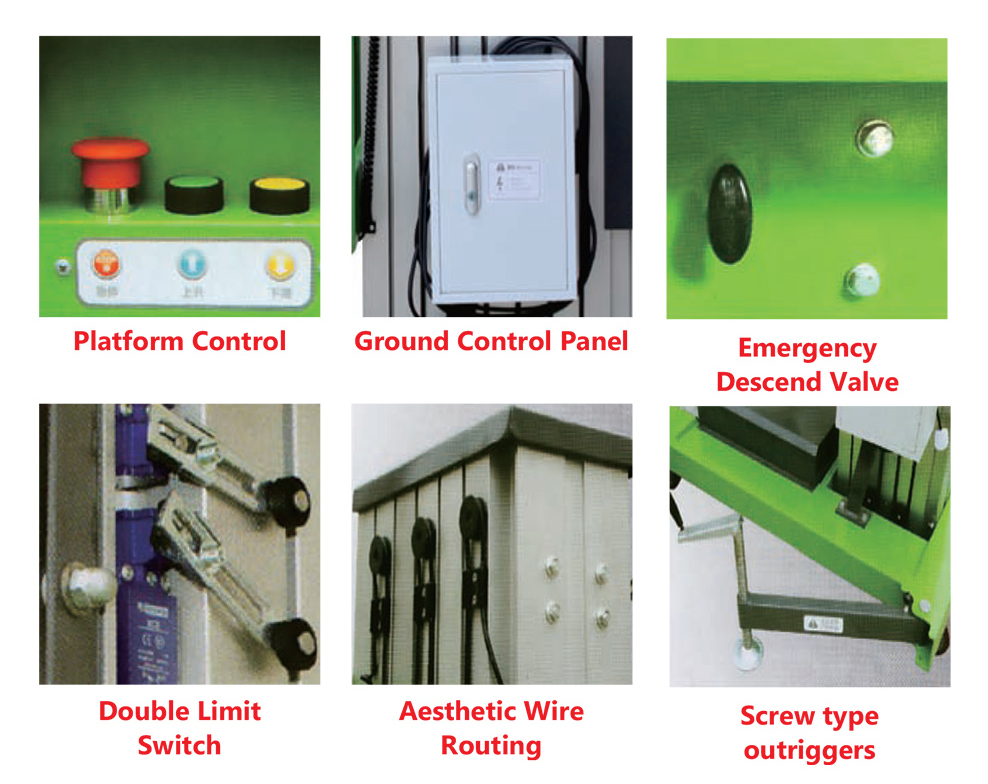

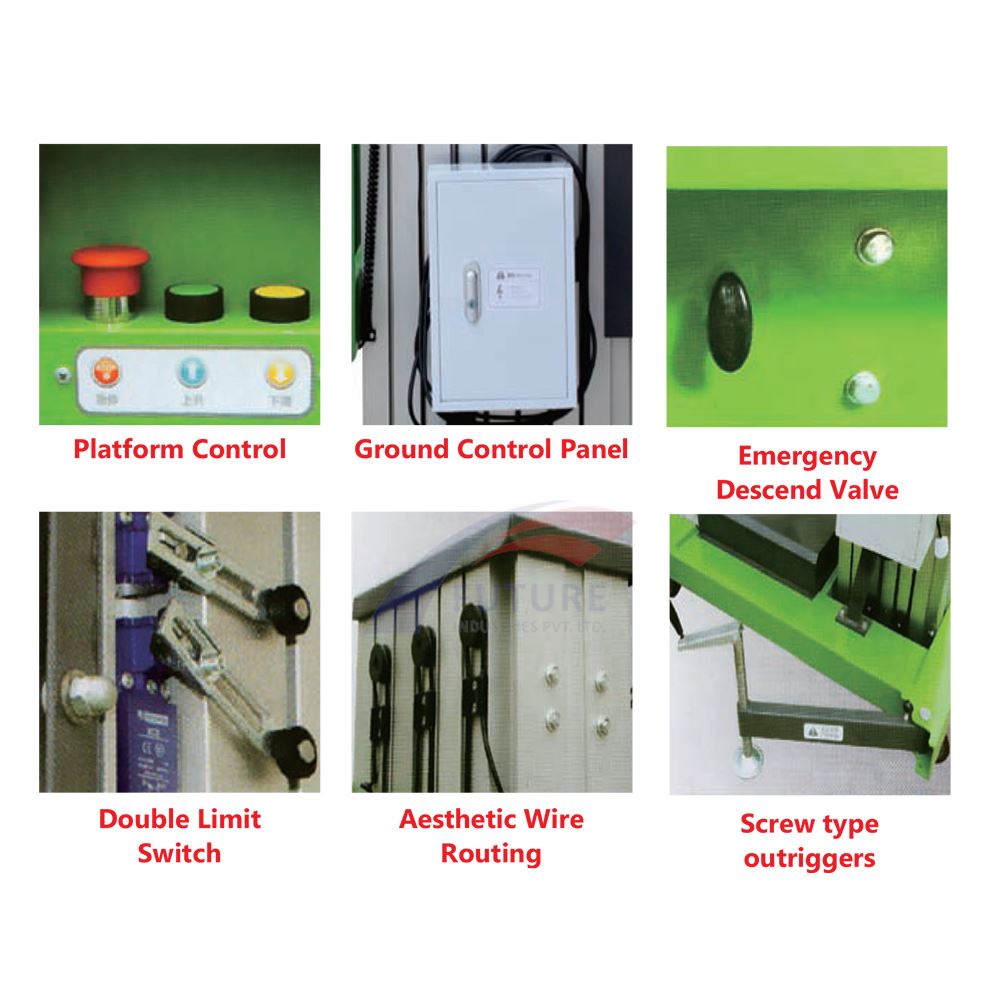

Standard Features
- Ground and platform control
- Auxiliary lowing device
- Emergency Stop Button
- Double Limit Switches
- Screw type outriggers
- Short circuit and leakage protection system
Optional Features
- Lifting power: DC24V power
- Stainless steel guardrail
- Electric driving power
Specification of Single Mast Aerial Platform
| MODEL | FIPL-AWP-185/8 | FIPL-AWP-185/10 | FIPL-AWP-185/11 | FIPL-AWP-185/12 |
| Lift capacity | 130kg | 130kg | 130kg | 130kg |
| Platform occupancy max | 1 | 1 | 1 | 1 |
| Working height max | 8.00m | 10.00m | 11.00m | 12.00m |
| Platform height max | 6.00m | 8.00m | 9.00m | 10.00m |
| Stowed length | 1.34m | 1.34m | 1.45m | 1.45m |
| Stowed width | 0.85m | 0.85m | 0.85m | 0.85m |
| Stowed height | 2.00m | 2.00m | 2.00m | 2.00m |
| Platform size | 0.60*0.55m | 0.60*0.55m | 0.60*0.55m | 0.60*0.55m |
| Outrigger Footprint | 1.7*1.67m | 1.7*1.67m | 1.93*1.77m | 1.93*1.77m |
| Ground clearance | 0.05m | 0.05m | 0.05m | 0.05m |
| Lifting Motor | 0.75kW | 0.75kW | 0.75kW | 1.1kW |
| Weight (AC) | 370kg | 390kg | 400kg | 420kg |
| Power source | 24V/80Ah | 24V/80Ah | 24V/80Ah | 24V/80Ah |
| Lifting Motor (DC) | 0.80kw | 0.80kw | 0.80kw | 0.80kw |
| Charger | 24V/15A | 24V/15A | 24V/15A | 24V/15A |
