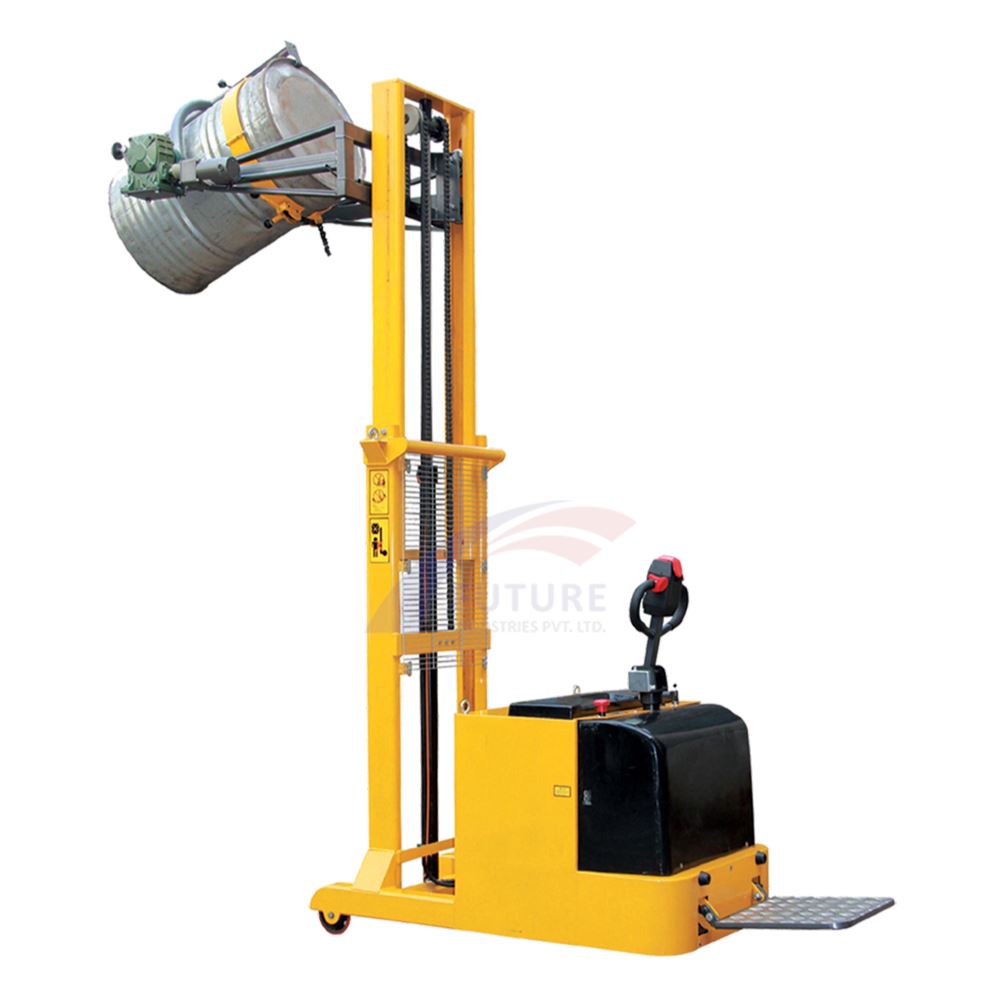

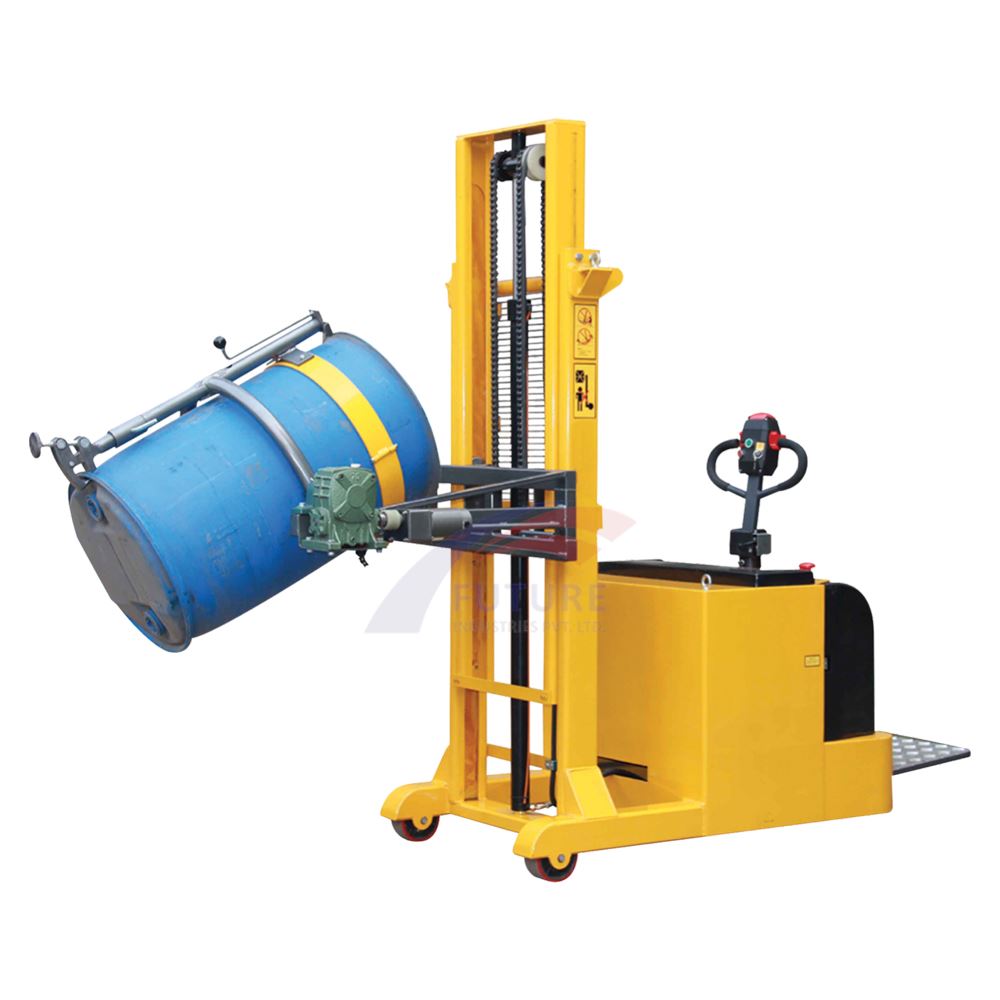

Counter Balance Full Electric Drum Lifter and Tilter
FIPL-YL420A
This Fully Electric Drum Lifter and Tilter is very efficient, fast, easy and reliable method for handling, loading and unloading rimmed drums. Drum Lifting and Tilting is done by a hydraulic power-pack and Movement is done by Rider type Driving System.
- Manual holding clamp, electric tilting.
- Power drive, transport, lift and tilt 55 gallon steel drums & plastic drums.
- Electrical vehicle exclusive walking control system.
- The multi-function control handle of man-machine integration, walking step-less speed controller, high-power reversing switch, integrated hydraulic Pressure pump station, high-power walking driving wheel.
Specification of Counter Balance Full Electric Drum Lifter and Tilter
| PARTICULAR | UNIT | FIPL-YL420A |
| Drive type | / | Electric |
| Operating type | / | Standing steer type |
| Load capacity | kg | 420 |
| Lifting height | mm | 2400 |
| Total height | mm | 1860 |
| Total length | mm | 2270 |
| Total width | mm | 1170 |
| Turning radius | mm | 2150 |
| Max grade ability (fully-loaded/ no load) | % | 3/5 |
| Driving wheel size | mm | ǿ250*80 |
| Tire | / | Polyurethane |
| Brake Type | / | Electro magneting breaking |
| Drive motor power | kW | 1.2 |
| Lifting motor power | kW | 2.2 |
| Noise level | Db(A) | <70 |
| Battery voltage / capacity | V/Ah | 24/210 |
| Charger | V/A | 24/30 |
| Net weight | Kg | 990 |
| Drum rotating range | º | 135º |
