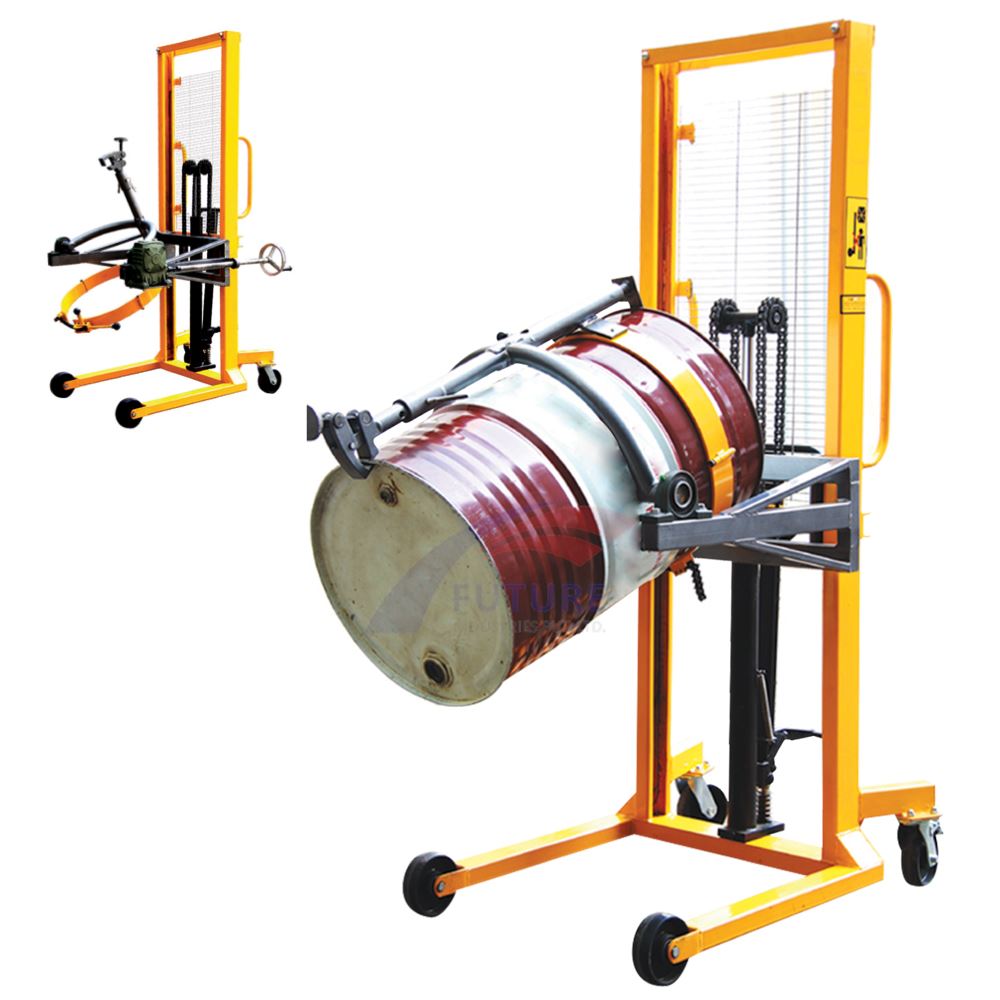

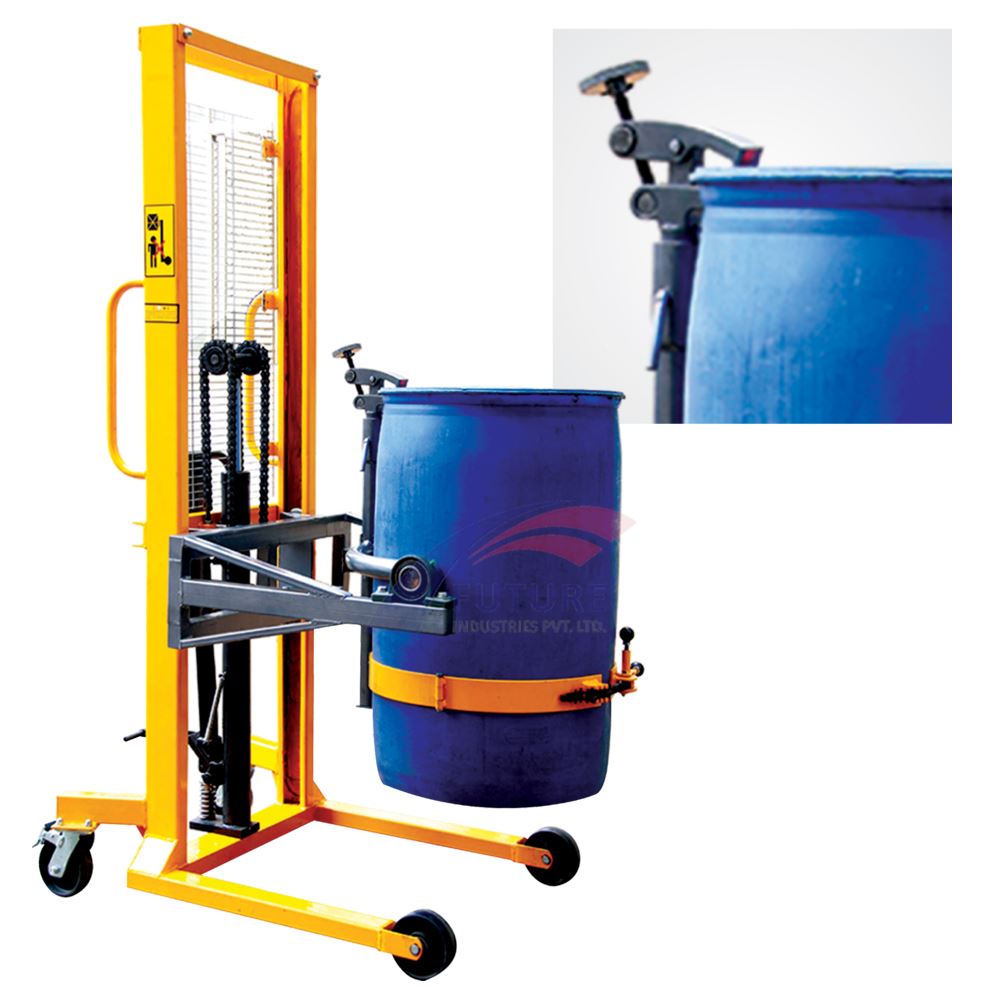

Manual Hydraulic Drum Lifter and Tilter

FIPL-DLT-159

Drum Lifter cum Tilter that is constructed using high quality solid steels that provides stability during transit. The drum pouring angle and height can be controlled while dispensing. The drum can be rotated 360° with the help of a hand gear. A spring – load clamp securely holds any rimmed drum. It have swivel steering wheels for easy positioning and precision roller bearing load wheels for maximum stability.

The combination of Snap-On type and hoop type is suitable for the handling and stacking of various 55-gallon steel drums and 200L closed plastic drums.

Back

Specification of Manual Hydraulic Drum Lifter and Tilter

PARTICULAR UNIT FIPL-DLT-159
Load capacity kg 350
Net weight kg 176
Lifting height mm 1400
Pouring height mm 1680
Caster dimension mm ǿ150*50
Inner/outer width of Front Leg mm 650/810
Overall size mm 1400*1000*2100
