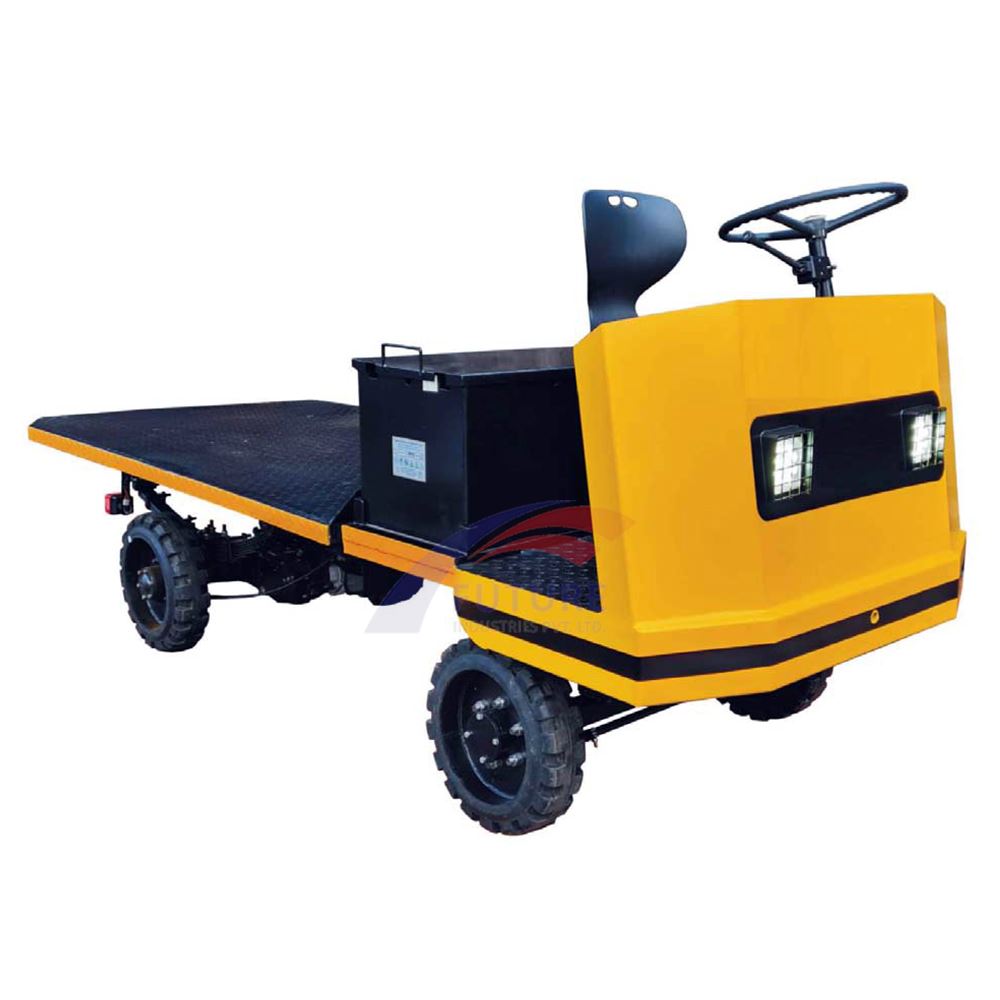

Four Wheel Platform Truck

FIPL-201A-DC

Four-wheel battery operated industrial platform trucks are ideal for use in factories, warehouses, dockyards, airports, railway workshops, fertilizers plants, chemical and pharmaceutical factories. It will increase the efficiency and productivity of your operation.

Low Center of Gravity and small turning radius ensures the stable and convenient operations. It is energy saving, pollution free, and silent in operation.

Safer operations by adding over-load protection and short circuit protection. Equipped with a high-quality battery and battery discharge indicator.

Electric Platform Truck comes with efficient Brush less motor and efficient Trans-axle drive with greater working backup, therefore perfectly equipped for demanding everyday tasks. Its spacious loading platform can handle up to 5000 Kg of payload.

A large battery capacity gives it a wide range. In multi-shift operations, the battery can also be quickly and easily exchanged from the top.

Key Components

Chassis
Fabricated from rolled channels and plates. Low profile chassis for all round visibility.

Electrical System

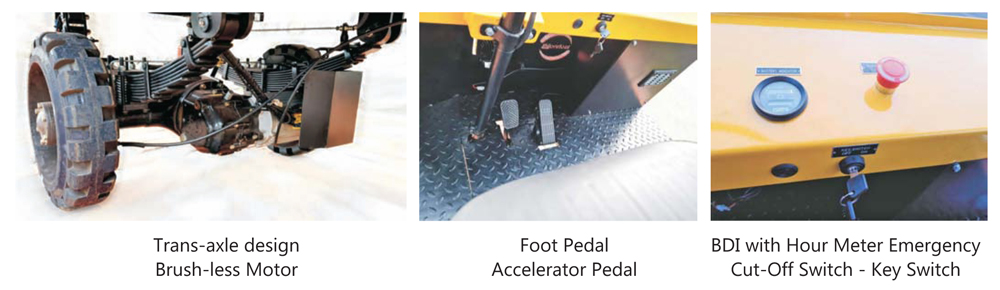

Brush-less DC/ step-less controller provides smooth and step-less control of speed and acceleration. Control panel is located below the steering handle, consist of ON-OFF switch, Key switch, forward and reverse switch, emergency cut-off switch and battery discharge indicator with low battery buzzer system.

Brake
Internally expanding double shoe type hydraulic brakes on rear wheel, operated by a foot pedal. Parking brake provided on the rear wheels.

Accessories
The truck comes with Horn/head lamp/ tail lamp and brake lights.

Drive Unit and Transmission
The drive mechanism is simple and efficient. It provides excellent traction and braking capacity through a drive axle & heavy duty brakes.

Brushless Speed Motor Advantages
Brush less speed motor's life is three times more than a brush series motor life. In this motor battery life increased by 30%.

Steering
Standard automotive type steering on front wheels for easy control.

Suspension
Leaf spring and shock absorber are provided on the both the axle.

Wheels
All tyre are solid rubber mounted tyres. Solid cushion/ Non-marking tyres can also be supplied as an option on customer request.

Back

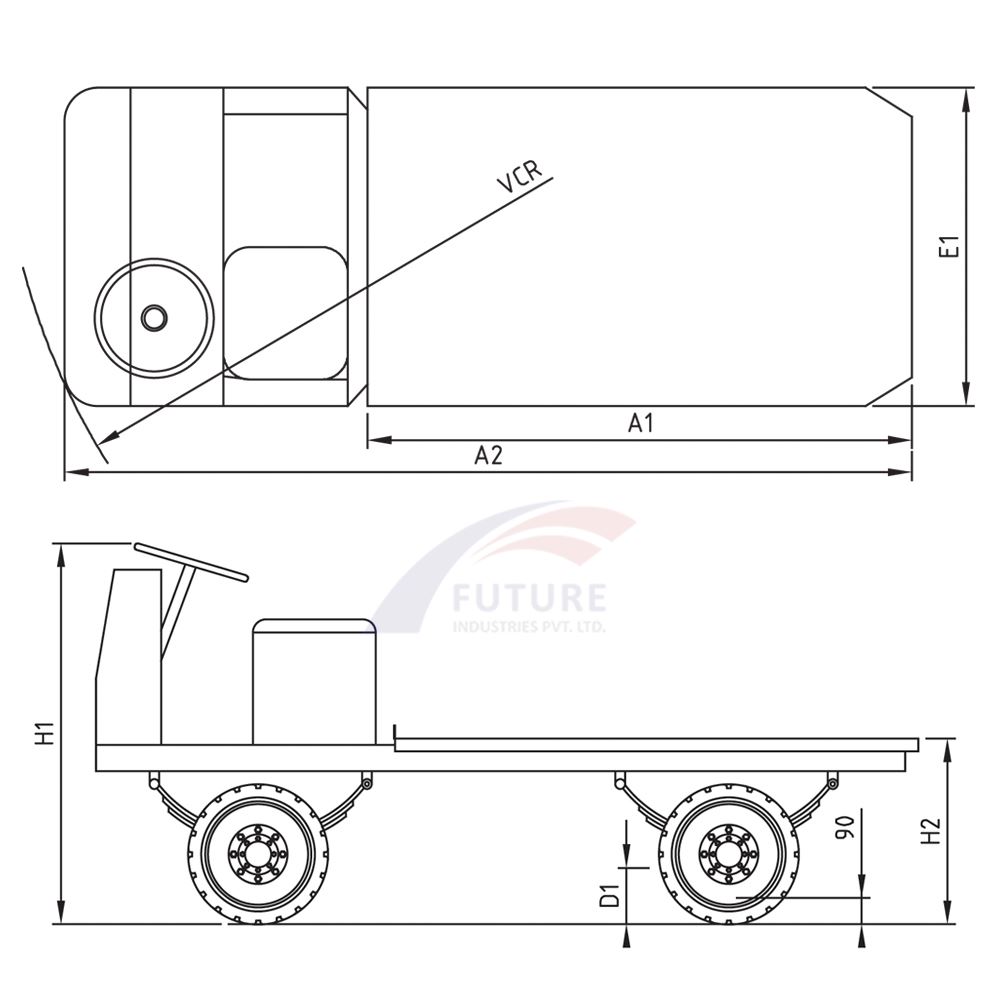

Specification of Four Wheel Platform Truck



Particular Unit      FIPL-201A-DC
Drive type   Electric
Load Capacity  Q(kg) 2000/3000/4000/5000
Tyres   Solid Rubber
Tyre size, front   18" x 5’
Tyre size, rear   18" x 5’
Wheel Base mm 1785 (Customizable)
Overall length A2 mm 2850 (Customizable)
Overall width mm 1250 (Customizable)
Overall Height H1 mm 1470 (Customizable)
Platform Size (L X W) A1 x E1 mm 2000 x 1200 (Customizable)
Platform Height Fixed H2 mm 650 - 700
Ground clearance, centre of wheelbase D1 mm 125
Turning radius Appx VTR (mm) 3300 (Customizable)
Travel speed, laden Km/h 8 to 9
Travel speed unladen Km/h 10 to 12
Gradeability- Laden %xm 1 :10
Gradeability - Unladen %xm 1:05
Seat   Plastic
Service brake   Hydraulic ( Double Shoe Type)
Controller   Brushless DC/ Stepless
Transmission Type   Transaxle
Drive motor Kw   3 / Brushless
Battery voltage, nominal capacity cs V/Ah 48/200
Suspension   Leaf Spring & Shock Absorbers on both axles
Steering   Automotive type on front wheels


Note: There may be any specification/dimensional change. If these specifications are critical, the proposed application should be discussed.
