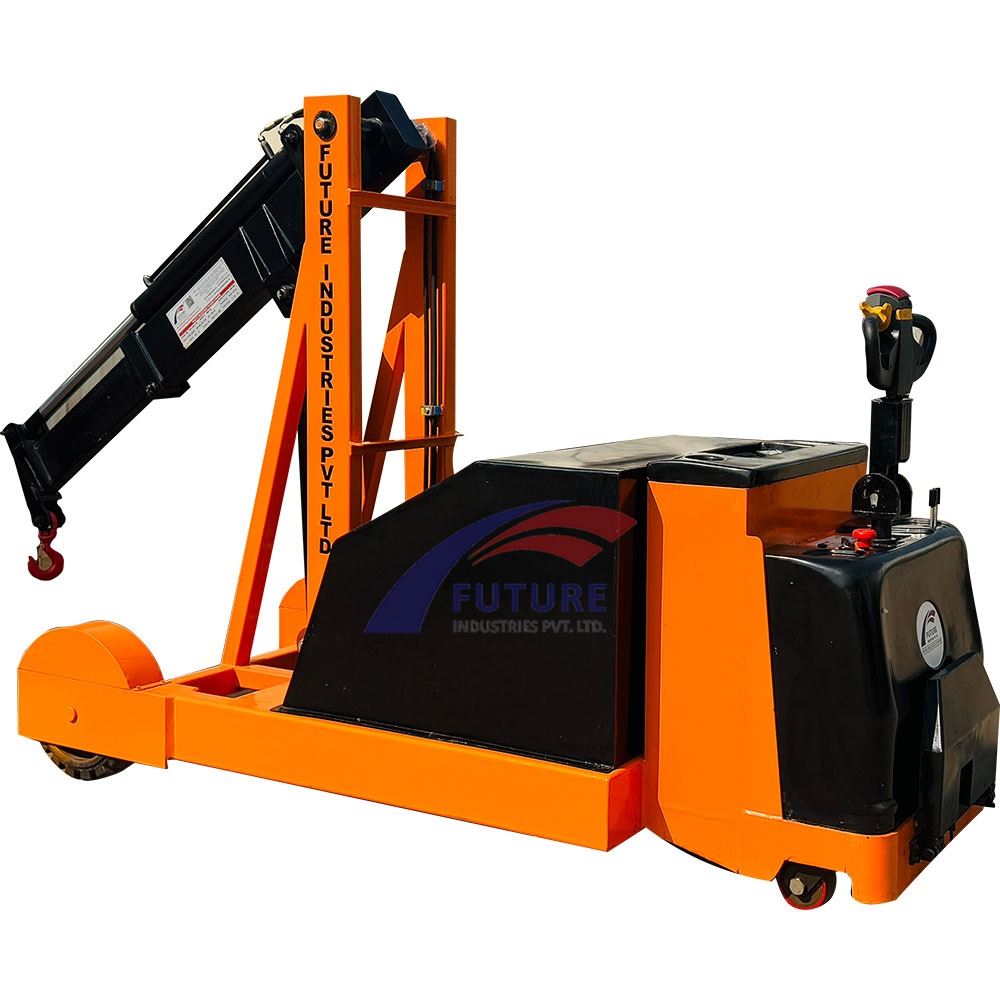

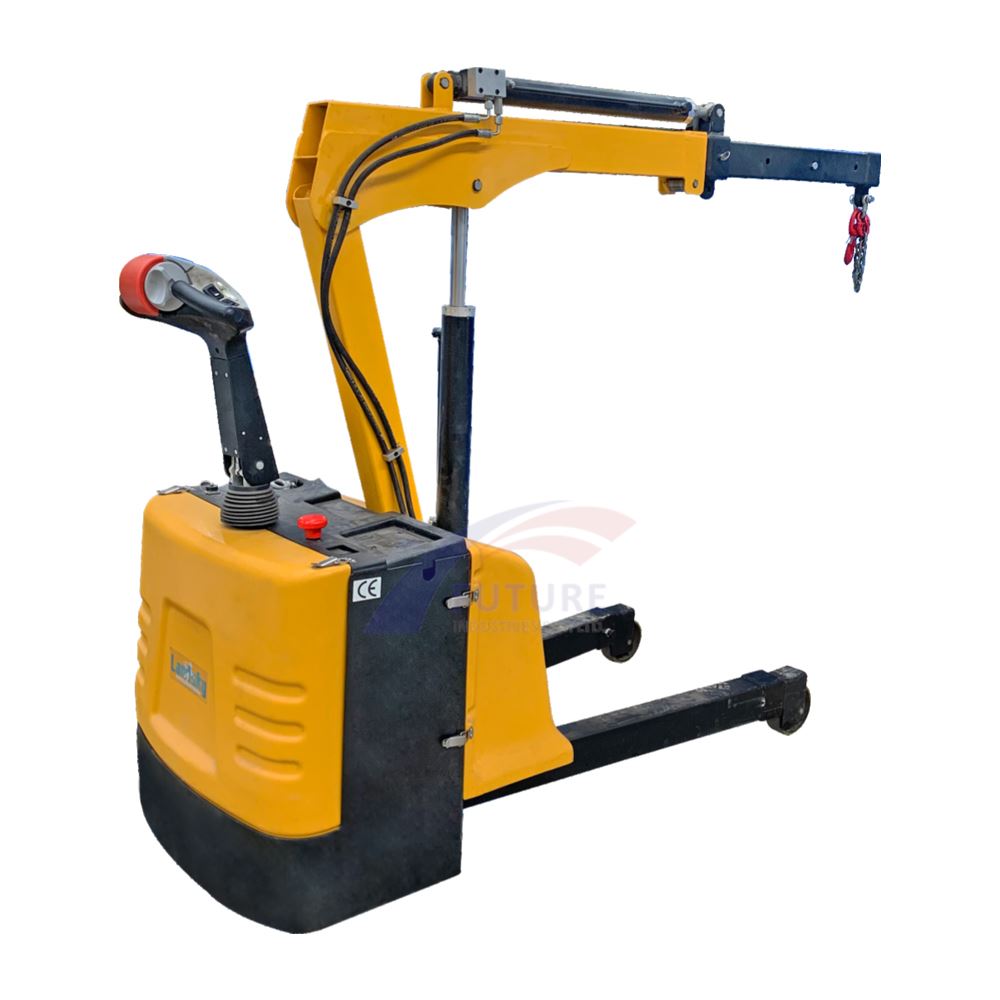

Fully Electric Floor Crane
FIPL-141A
If you want to pick a material from lifting belt and then shift it then the floor crane is most suitable equipment. The boom length is extendable which can be set as per the size of your object.
- The Fully Electric Floor Crane makes material lifting and shifting through hook easy and efficient.
- Electric Braking makes it safe even on slops.
- No need to Push or Pull Heavy Loads, electric drive unit assists operator greatly, especially while turning.
- High quality MS Material, Drive unit, gear box and Curtis controller ensures longer life.
Specification of Fully Electric Floor Crane
| Brand | FIPL |
| Model No | FIPL-141 A |
| Power Supply | Battery |
| Operator Type | Walkie |
| Boom Extension Type | Hydraulic |
| Performance | |
| Capacity - Q | 3000 Kg |
| Extended Boom Capacity | 100Kg |
| Travel Speed Loaded | 5.3 Km/h |
| Travel Speed Unloaded | 6.0 Km/h |
| Gradeability Loaded/Unloaded | 8/10 % |
| Lifting Speed Loaded | 0.09m/sec (9cm/sec) |
| Lifting Speed Unloaded | 0.14m/sec (14cm/sec) |
| Lowering Speed Loaded | 0.27m/sec (27cm/sec) |
| Lowering Speed Unloaded | 0.17m/sec (17cm/sec) |
| Service Brake | Electromagnetic |
| Steering | Manual |
| Drive/ Electrical System | |
| Drive Motor (Kw) | 1.5 Kw |
| Lift Motor (Kw) | 24 V; 2 Kw |
| Transmission Type | Direct Gear Drive |
| Transmission Ratio | 01:23 |
| Battery Voltage/Capacity | 24 V / 150AH |
| Drive Control | Electronic MOSFET |
| Wheels | |
| Size of Load Wheels | Ø250x75 mm PU x 2 Nos |
| Size of Support Wheels | Ø150x50 mm PU x 2 Nos |
| Size of Drive Wheels | Ø230x70 mm PU x 1 Nos |
| Dimensions | |
| Boom Extension - C | 1000mm |
| Length - l1 | 2300mm |
| Head Length - l2 | 1045mm |
| Width - b1 | 850mm |
| Lowered hook height - h13 | 1000mm |
| Lowered hook ht boom extended - h12 | 300mm |
| Lifted hook height - h3 | 2500mm |
| Lifted hook ht boom extended - h4 | 3250mm |
| Ground Clearance - m2 | 50mm |
| Overall Height - h1 | 2025mm |
| Turning radius - Wa | 1850mm |
| Wheelbase - y | 1900mm |
| Track width Front/Rear - b11/b10 | 800mm/620mm |
| Right Angle aisle width - Ast | 2696mm |
| Vehicle weight With Battery & Mast | 4030kg (Approximate) |
| Battery weight | 285kg (Approximate) |
