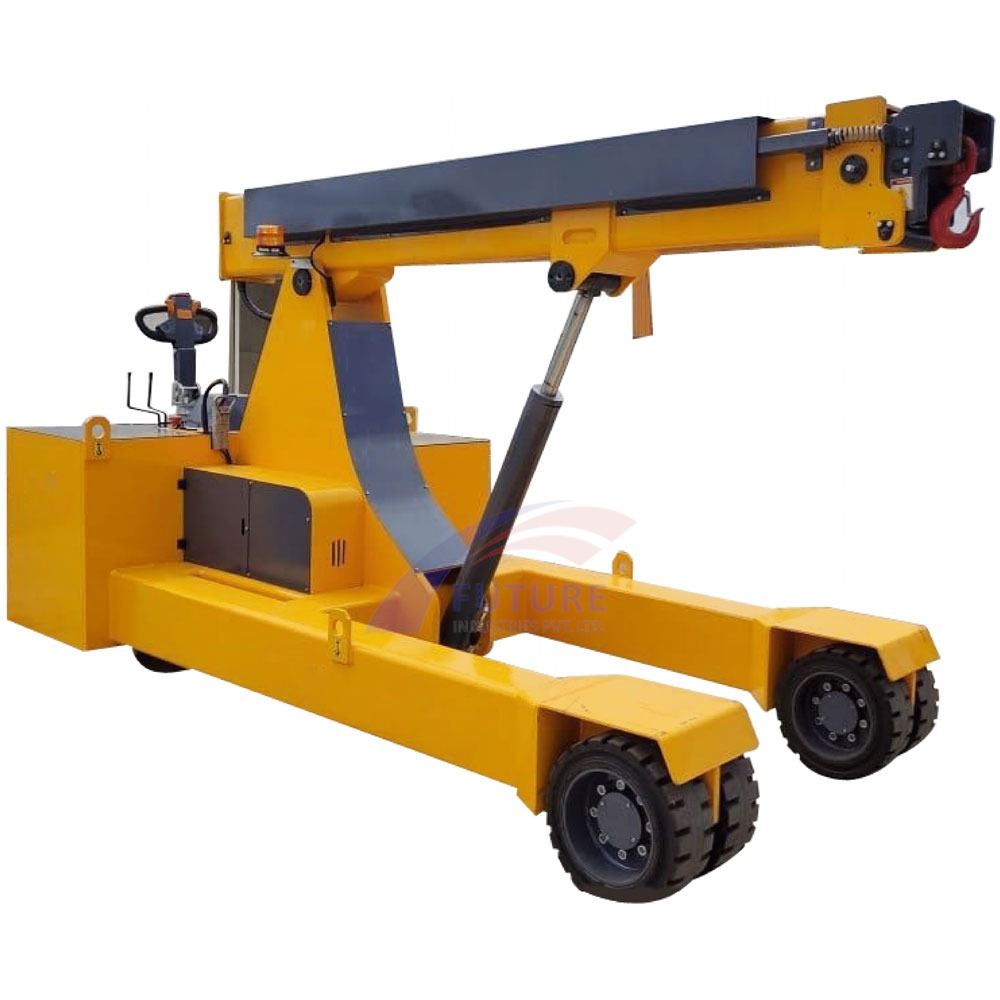

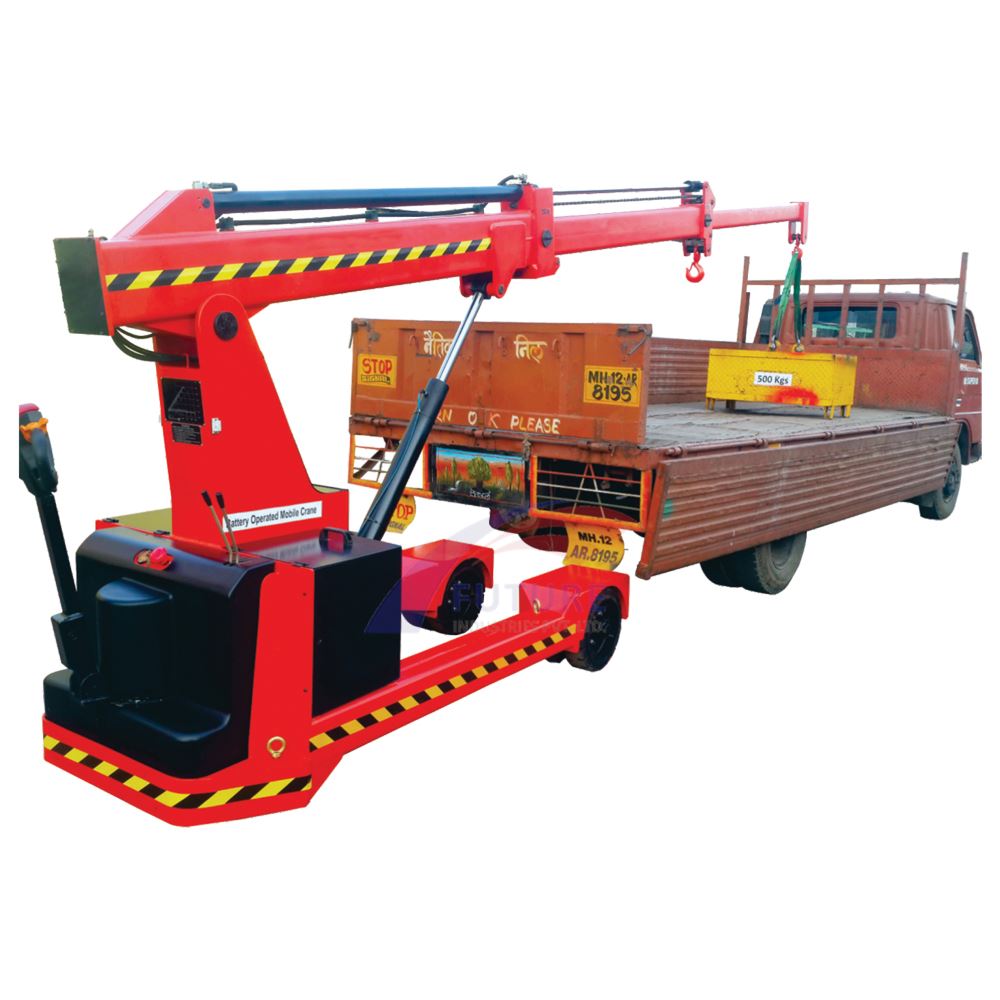

Pick and Carry Floor Crane
FIPL-141C
- The Fully Electric Floor Crane makes material lifting and shifting through hook easy and efficient.
- Electric Braking makes it safe even on slops.
- No need to Push or Pull Heavy Loads, electric drive unit assists operator greatly, especially while turning.
- High quality MS Material, Drive unit, gear box and controller ensures longer life.
Specification of Pick and Carry Floor Crane
| Brand | FIPL |
| Model Number | FIPL-141C |
| Power Supply | Battery |
| Operator Type | Walkie |
| Boom Extension Type | Hydraulic |
| Capacity - Q | 3000 Kg - Customizable |
| Extended Boom Capacity | 300 Kg / 500 Kg - Customizable |
| Service Brake | Electromagnetic |
| Drive Motor (Kw) | 2 / 2.5 kW |
| Lift Motor (Kw) | 3 kW |
| Battery Voltage/Capacity | 24 / 480 |
| Drive Speed Unladeen / Laden (Kmph) | 5 to 4 |
| Size of Load Wheels | Ø400x125 mm - 4 Nos. |
| Size of Drive Wheels | Ø240x100 mm |
| Boom Length (Close) | 2800mm - Customizable |
| Boom Length (Extended) | 4000mm – Customizable |
| Boom Tilting (Up/Down) | 45°/10 ° |
| Lifted hook height boom extended | 3100mm - Customizable |
| Overall Height | 2160mm - Customizable |
