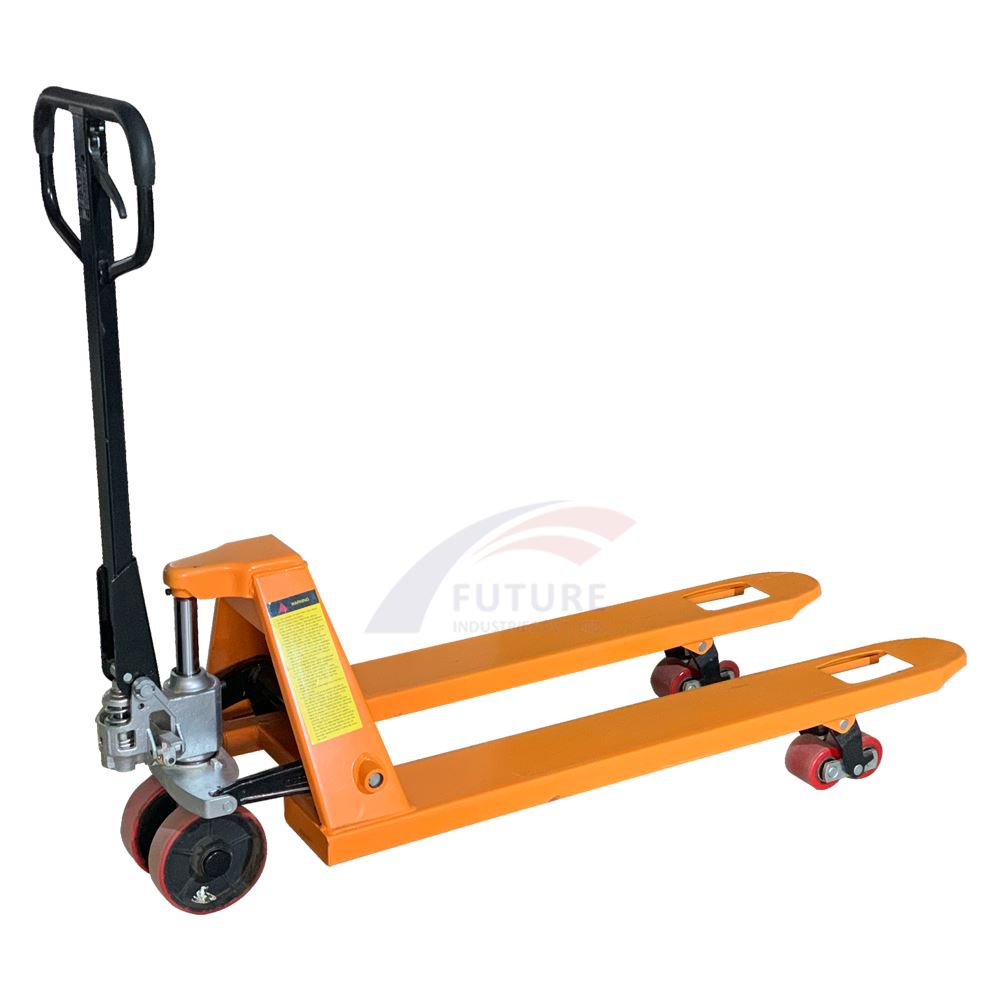

Hand Pallet Truck
FIPL-HPT-101
The Hand Pallet Truck is widely used in warehouses, industries, markets for all manual transport tasks over short distances. Heavy loaded pallets are easy to move with this HPTs. It is an ideal “storage aid” and “handling partner”.
Ergonomic large rubber handle ensures a comfortable hold and easy operation.
|
One-piece cast pump with |

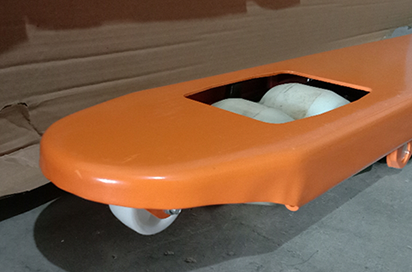

Effortless pallet entry /exit rollers to make it easier to |
Steering: Easy to maneuver with 210 degrees turning radius. All greased pivot points ensure excellent maneuverability with effortless steering.
Spray finishing: Standard painting system ensures the best power coating and painting quality.
Reliable construction: Heavy gauge steel construction, drop forged lift link arms provide needed strength and durability.

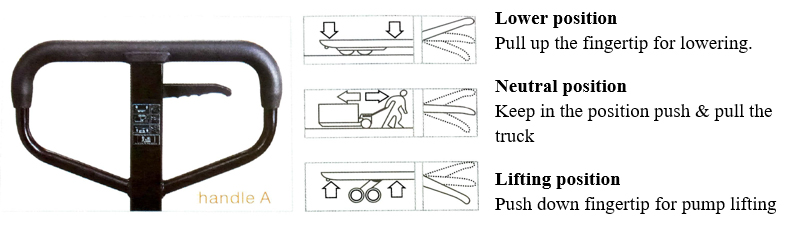

Easy lowering operation: Foot and hand both controls are available for the lowering function to ensure easy operation.
Options: Available with Nylon, Polyurethane or MS Wheels.

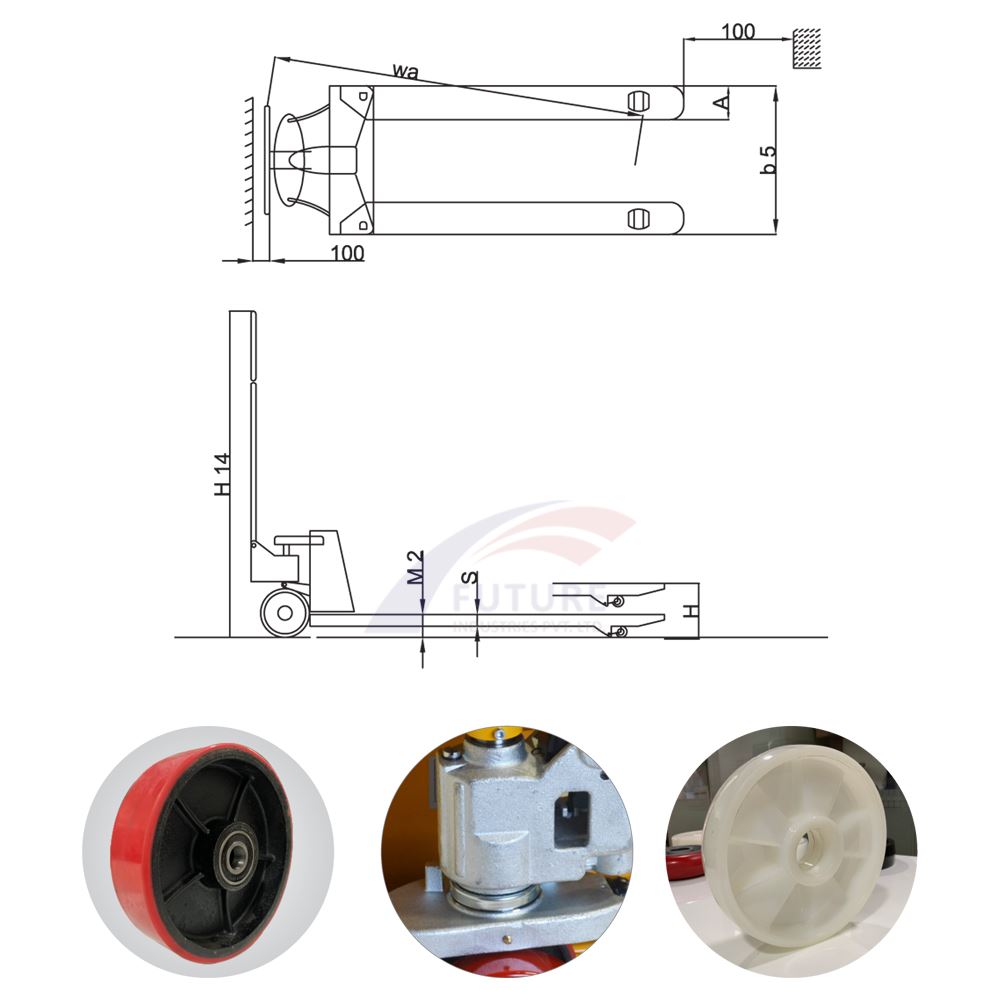

Specification of Hand Pallet Truck
| Model | FIPL-HPT-101-20 | FIPL-HPT-101-25 | FIPL-HPT-101-30 | FIPL-HPT-101-50 |
| Capacity (kg) | 2000 | 2500 | 3000 | 5000 |
| Min. fork height (mm) | 65/75/85 | 65/75/85 | 75/85 | 80/90 |
| Max. fork height (mm) | 175/185/195 | 175/185/195 | 185/195 | 190/200 |
| Lifting height (mm) | 110 | 110 | 110 | 110 |
| Fork length (mm) | 1150/1220 | 1150/1220 | 1150/1220 | 1150/1220 |
| Single fork width (mm) | 160 | 160 | 160 | 160 |
| With over all forks (mm) | 550/685 | 550/685 | 550/685 | 550/685 |
| Fork wheel – single (mm) | 80x93/74x93 | 80x93/74x93 | 80x93/74x93 | 80x93/74x93 |
| Fork wheel – tandem (mm) | 80x70 | 80x70 | 80x70 | 80x70 |
| Steering wheel (mm) | 180x50 | 180x50 | 180x50 | 180x50 |
| Self weight (kg) | 60-65 | 73-92 | 80-90 | 120-130 |
| Qty20 feet container (pcs) | 180/144 | 180/144 | 180/144 | 180/144 |
