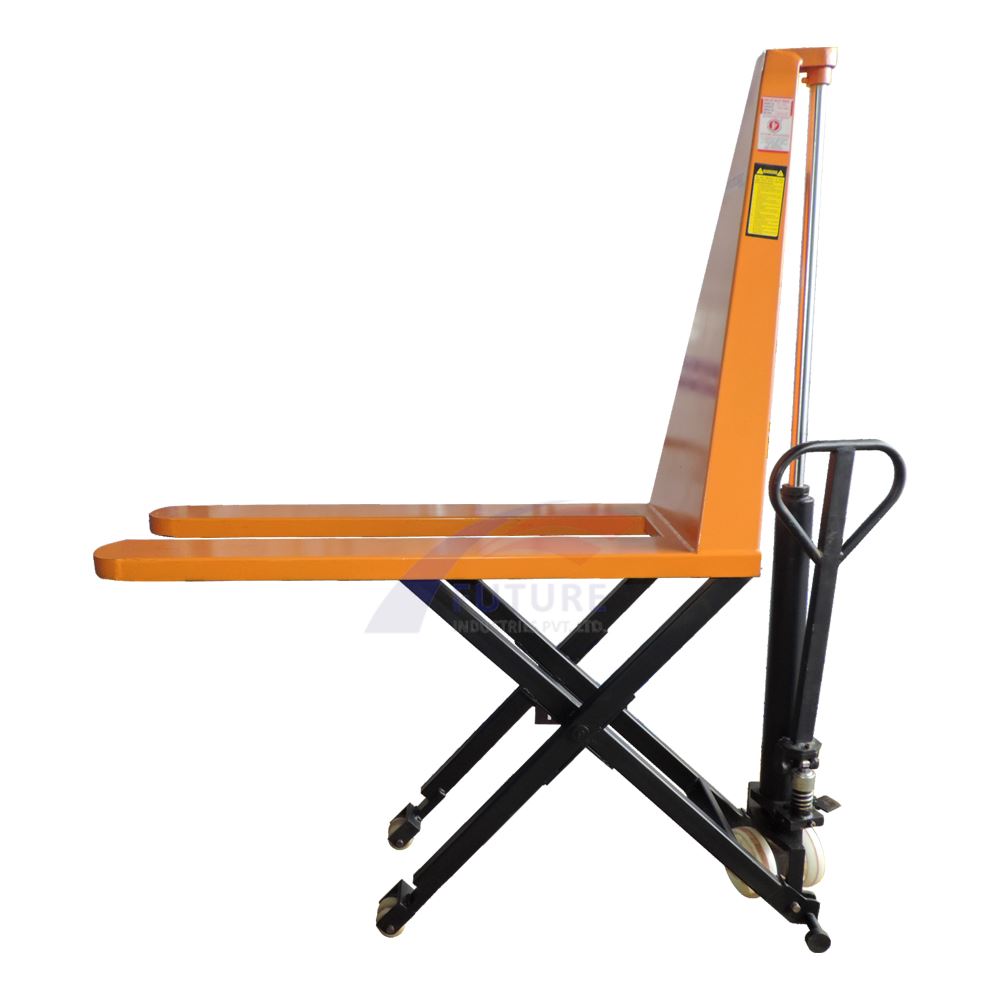

High Lift Pallet Truck

FIPL-HL-105/08/10

Scissor Lift Pallet Truck or High Lift Pallet Truck designed to load and unload conveyor, feed presses, or any applications requiring moving and positioning pallets or containers of materials. Scissor mechanism gives it required strength.

Improved Safety: Automatic activation of self-adjusting stabilizers when lifting loads higher than 400 mm for maximum stability.

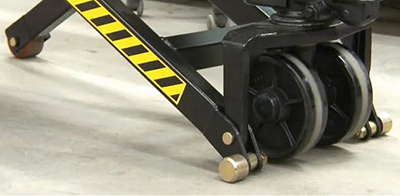

Great Stability: Extra-long front legs increase the, Stability when handling unevenly loaded pallets. When lifting height below 400 mm, it is an easy to move as a pallet truck, above 400 mm the truck is automatically locked by triggering the supports at both sides of the steering wheels.

Back

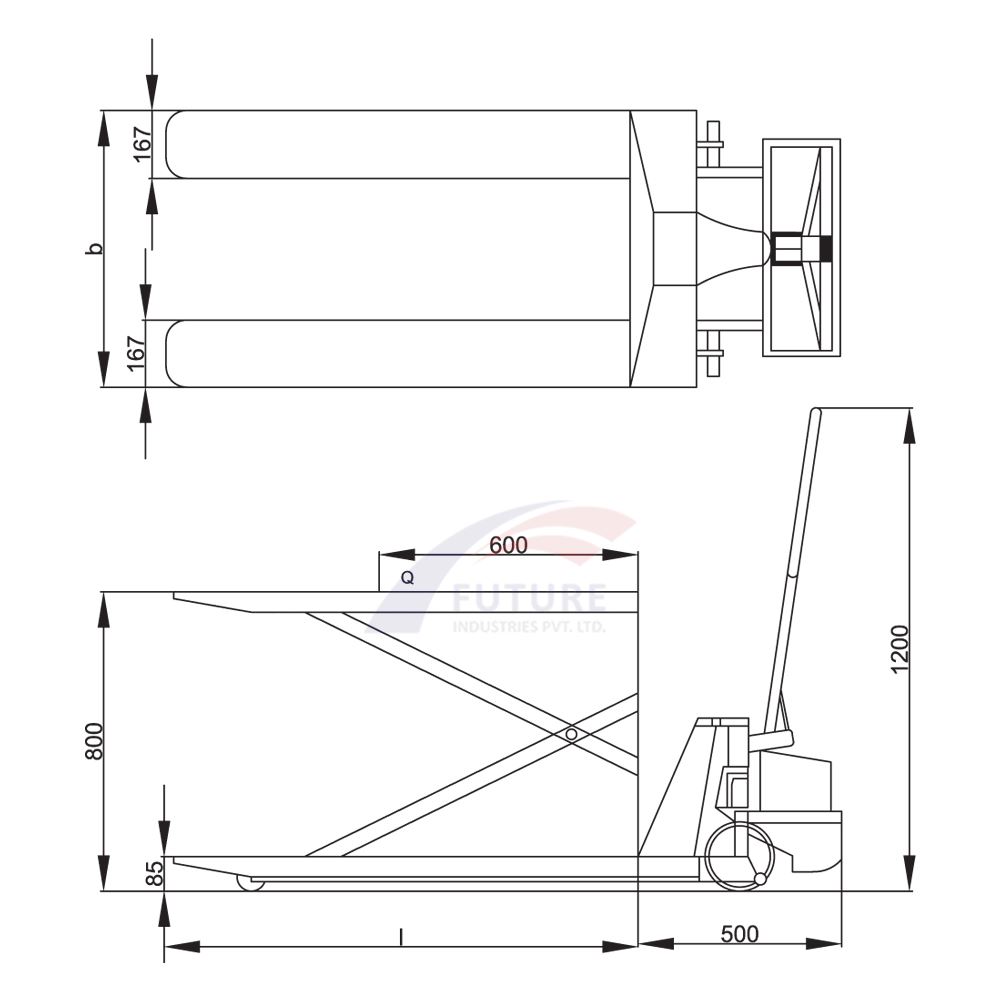

Specification of High Lift Pallet Truck

MODEL FIPL-HL-105/08/10
Capacity 800/1000
Fork width (mm) 540/680
Fork Length (mm) 1150/1220
Min. Fork Height (mm) 85/90
Max. Fork Height (mm) 800/1000
Steering wheel Polyurethane / Nylon
Fork wheel Nylon / polyurethane
Self weight 125-135
