Stainless Steel Pallet Truck
FIPL-SSHPT-104
Stainless steel pallet trucks are designed for environments where hygiene is paramount or where the pallet truck will come into contact with corrosive substances such as salt water, acids and various chemicals.
Features
- Full stainless steel mainframe.
- Full stainless steel hydraulic pump and handle.
- Full stainless push rods, axis, pins, bolts & bearings.
- Fully sealed hydraulic pump (i.e. No atmospheric contaminates in hydraulics.)

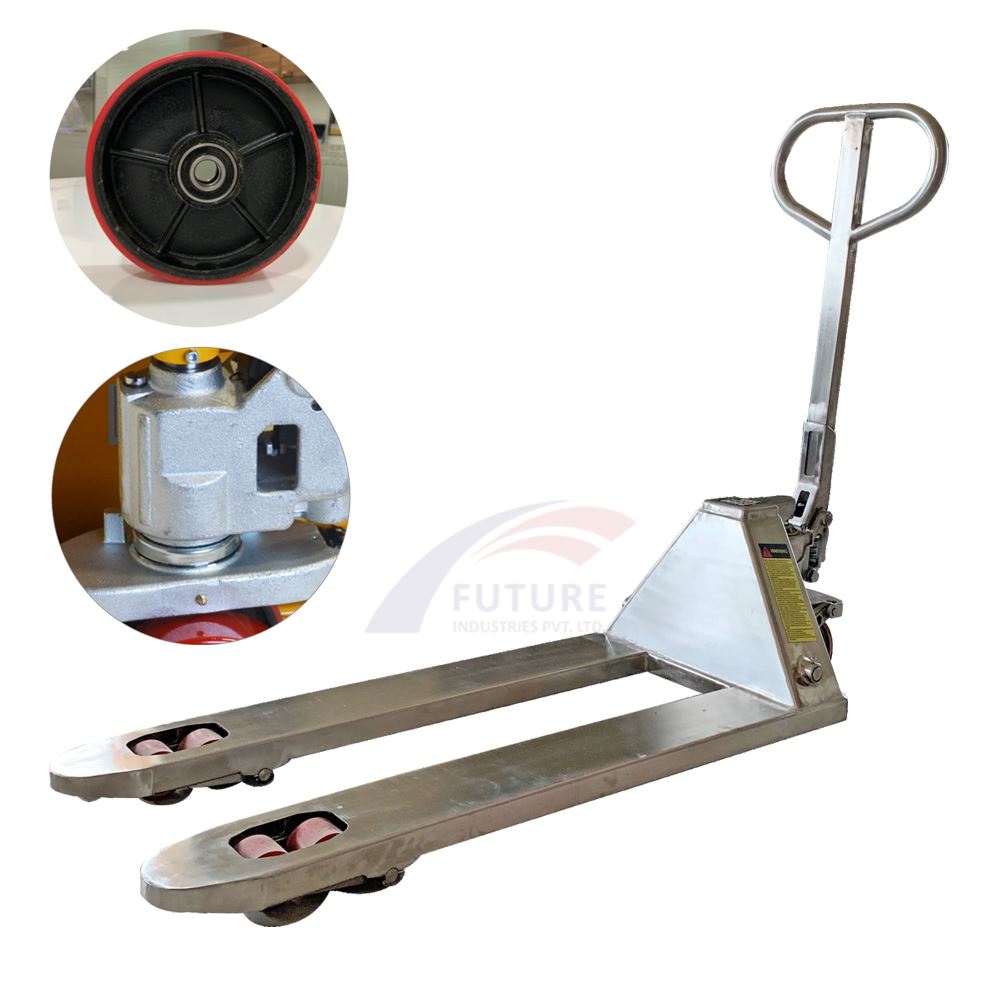

High Quality Pump
The one-piece cast pump design resists the efforts of cold, condensation and washing. And they are fitted with additional grease nipples for easy maintenance and with sealed stainless steel bearings.
Options: Available with Nylon and Polyurethane wheels.

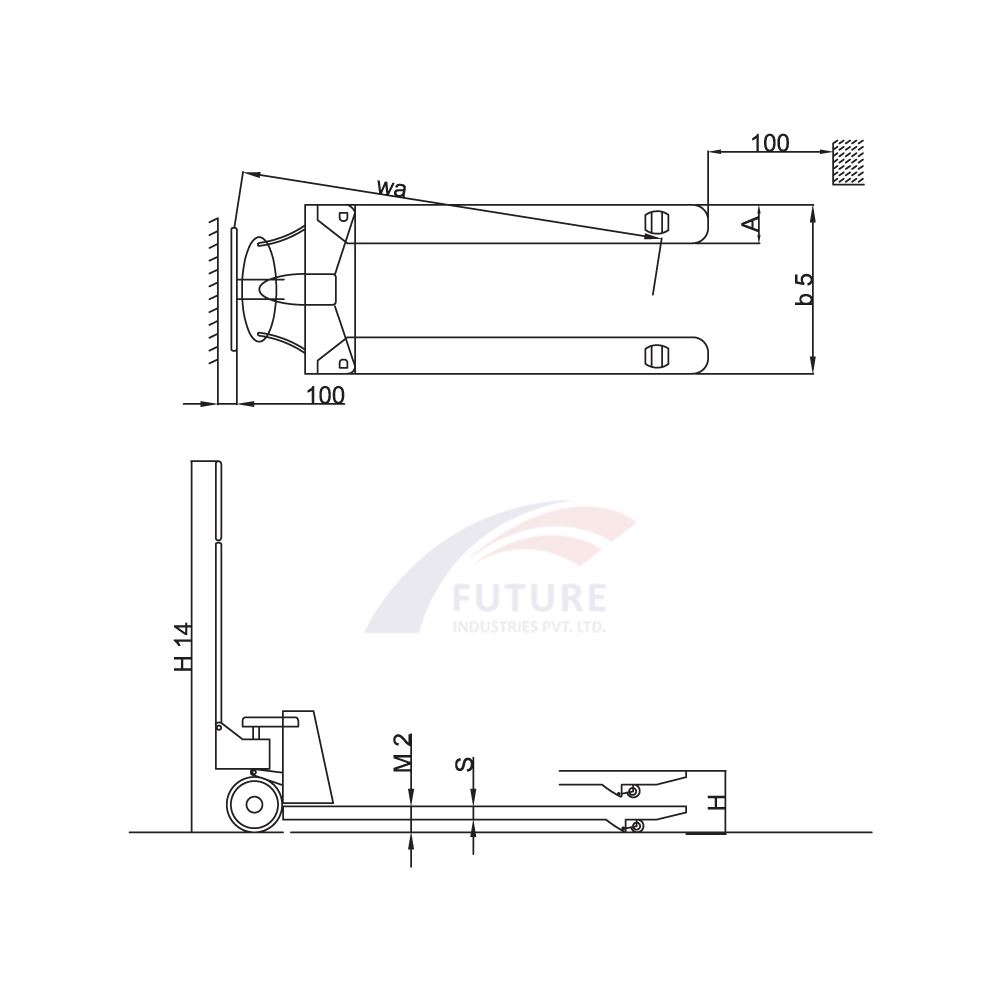

Specification of Stainless Steel Pallet Truck
| Model | FIPL-SSHPT-104-20 | FIPL-SSHPT-104-25 | FIPL-SSHPT-104-30 | FIPL-SSHPT-104-50 |
| Capacity (kg) | 2000 | 2500 | 3000 | 5000 |
| Min. fork height (mm) | 65/75/85 | 65/75/85 | 75/85 | 80/90 |
| Max. fork height (mm) | 175/185/195 | 175/185/195 | 185/195 | 190/200 |
| Lifting height (mm) | 110 | 110 | 110 | 110 |
| Fork length (mm) | 1150/1220 | 1150/1220 | 1150/1220 | 1150/1220 |
| Single fork width (mm) | 160 | 160 | 160 | 160 |
| With over all forks (mm) | 550/685 | 550/685 | 550/685 | 550/685 |
| Fork wheel – single (mm) | 80x93/74x93 | 80x93/74x93 | 80x93/74x93 | 80x93/74x93 |
| Fork wheel – tandem (mm) | 80x70 | 80x70 | 80x70 | 80x70 |
| Steering wheel (mm) | 180x50 | 180x50 | 180x50 | 180x50 |
| Self weight (kg) | 60-65 | 73-92 | 80-90 | 120-130 |
| Qty 20 feet container (pcs) | 180/144 | 180/144 | 180/144 | 180/144 |
