Scissor Die Loader (WP)
FIPL-WP

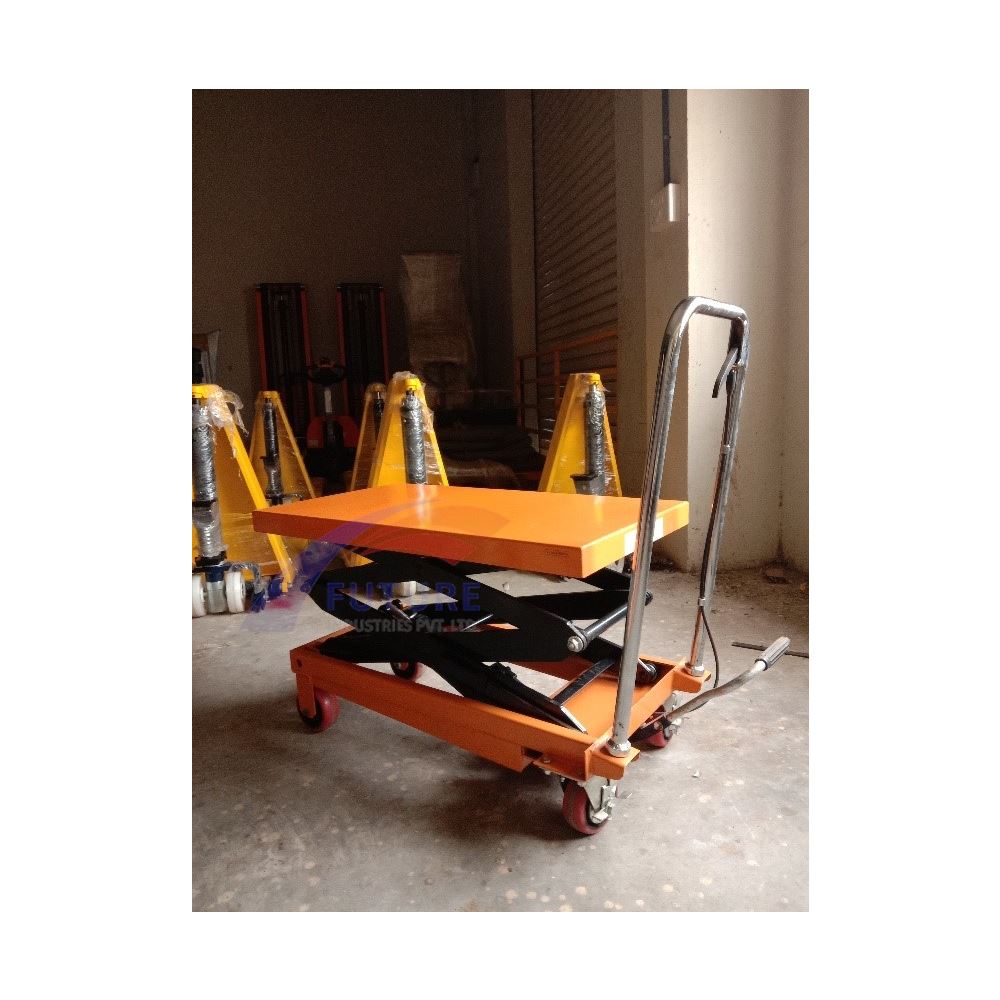

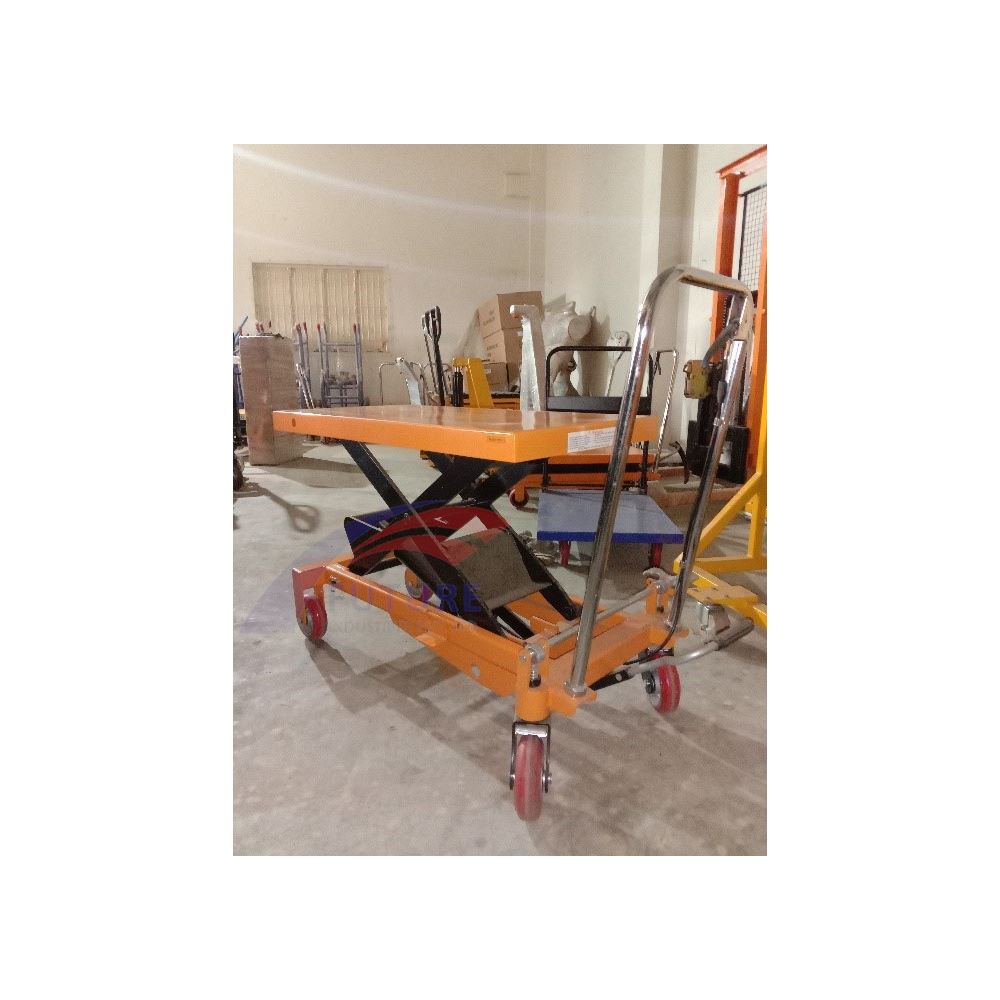

Scissor lift table proved an ergonomic solution to lifting, positioning and transporting heavy loads. This Hydraulic Scissor Table is made of high-strength steel, the design structure is reasonable, safe, stable and reliable. It has built-in safety valve, sealed cylinder with manually controlled hydraulic system and manual movements. It is very easy to operate with its ergonomically design handle and foot pedal.
Standard Features
- Manual Foot Operated Pump.
- PU Caster Wheels.
- Handle to push/pull with down lever.
Additional / Optional Features

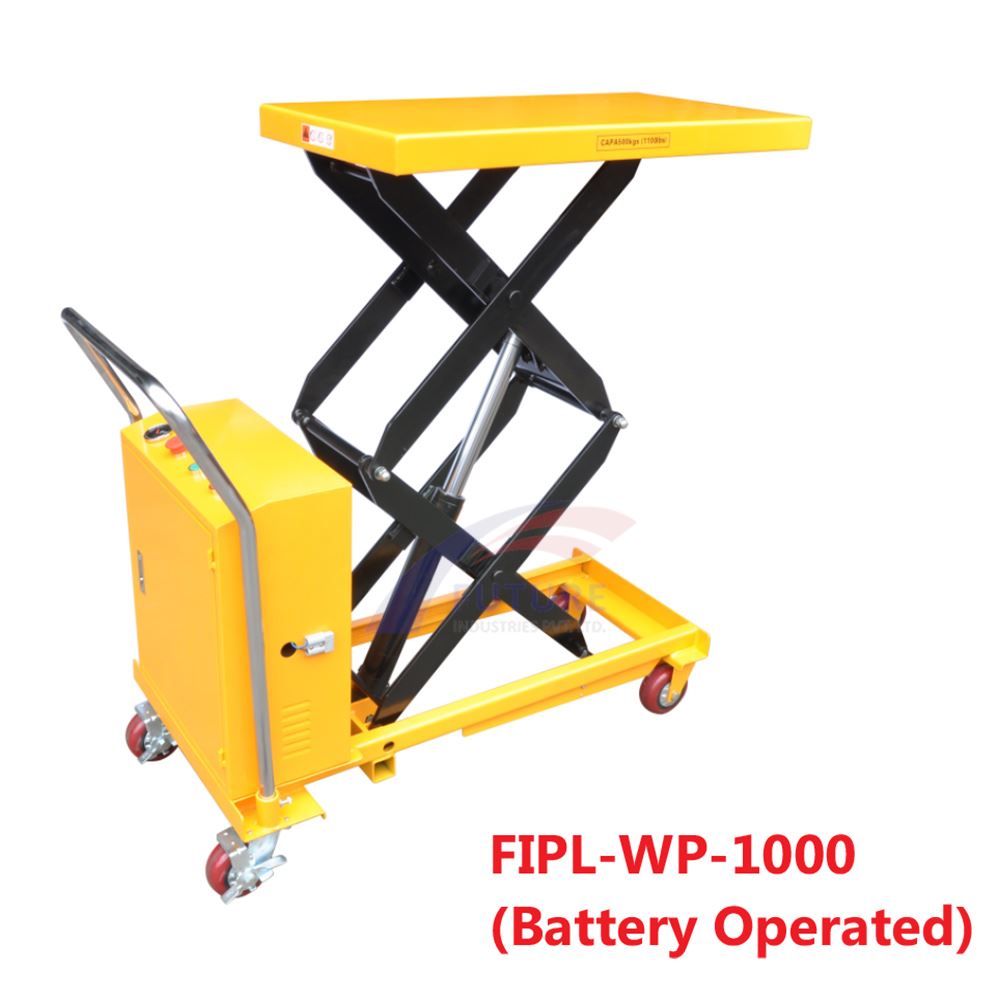

- Battery / Electric Operated Lifting.

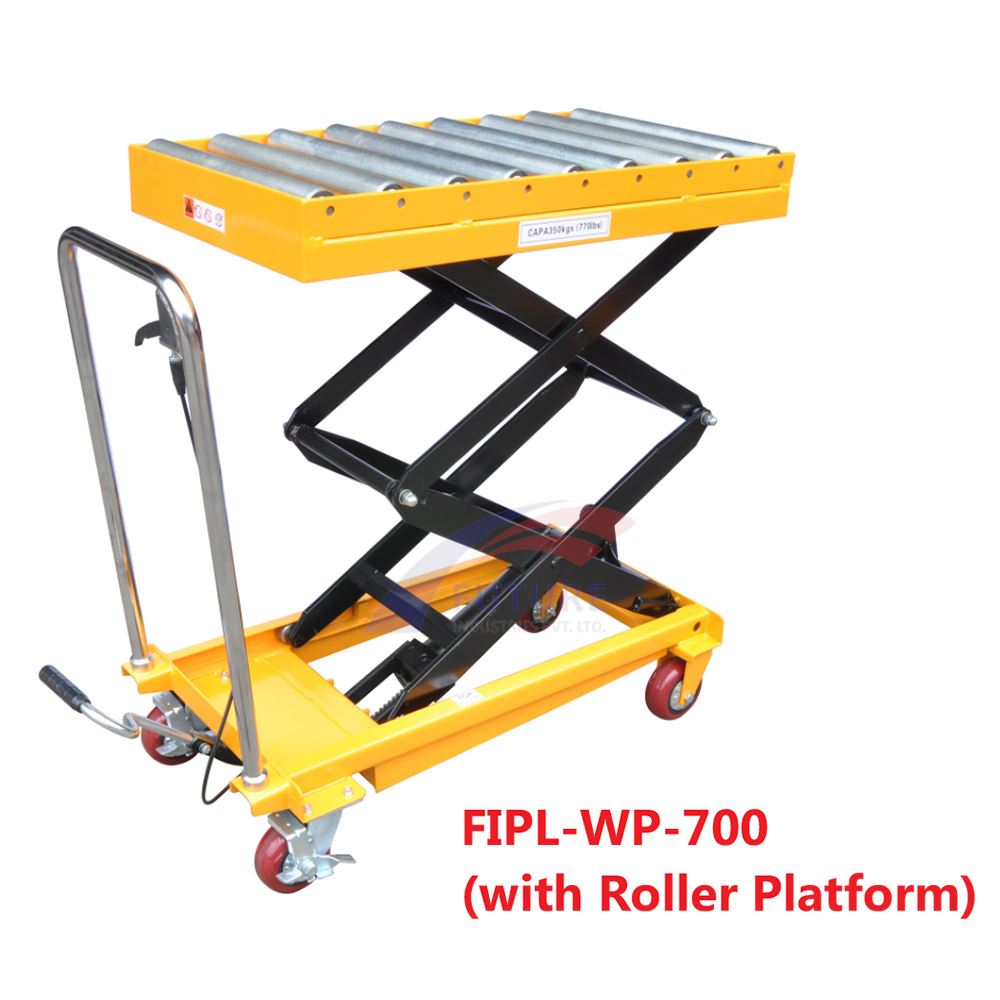

- Additional Roller Platform on Top.
- Different type and size of wheels.
- Electric Movement with Drive Unit.
Specification of Scissor Die Loader (WP)

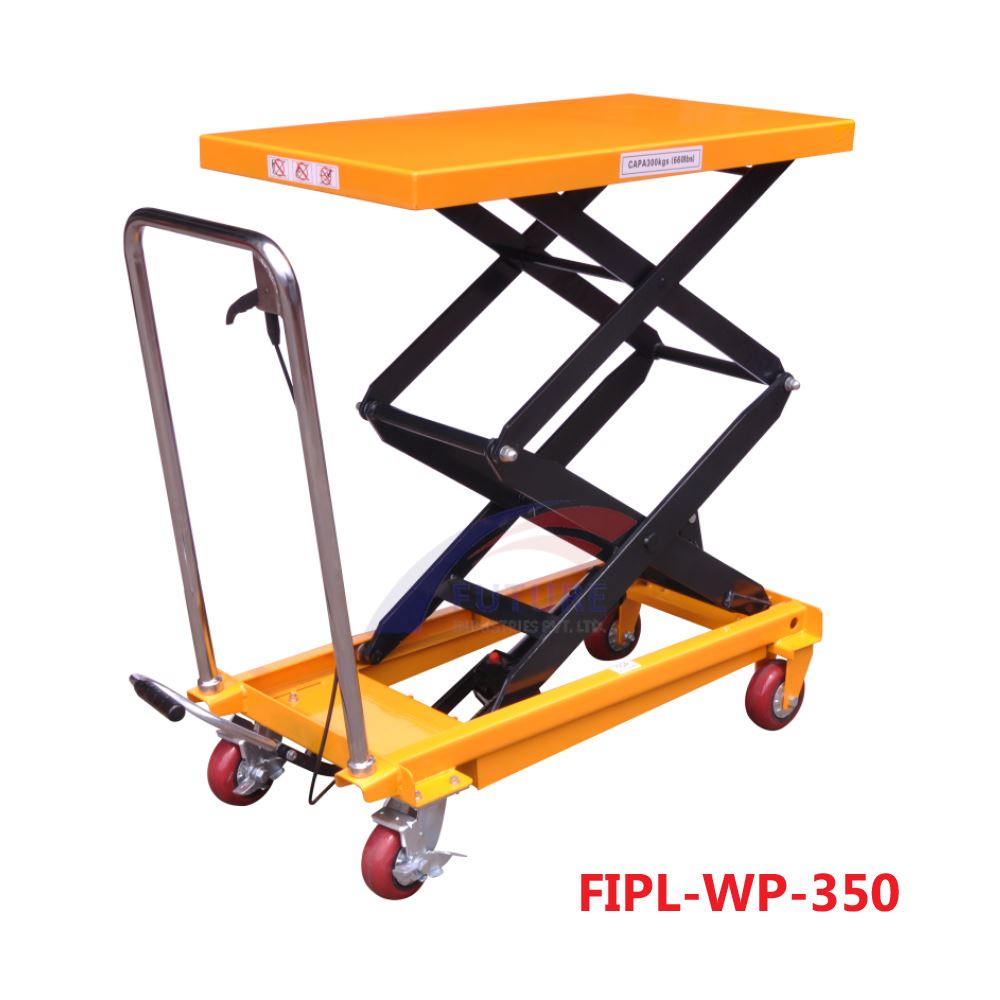

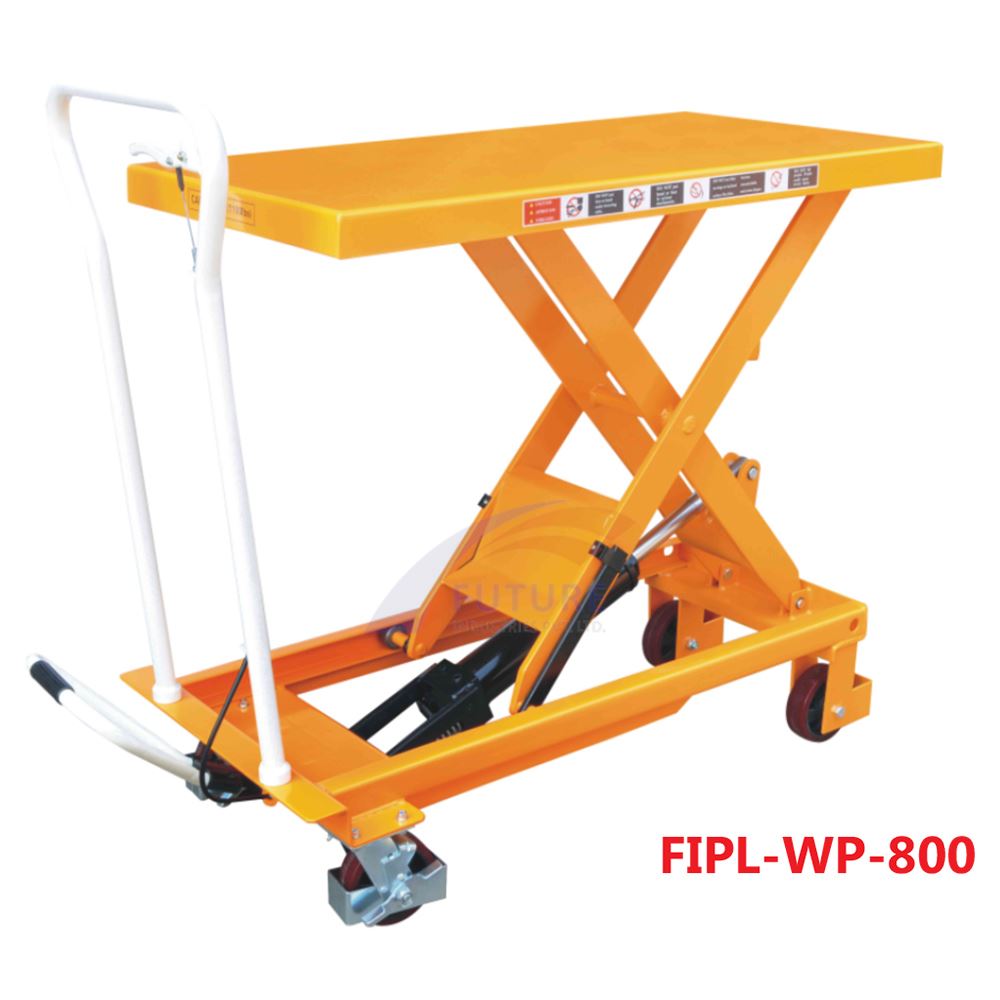

| MODEL | FIPL-WP-350 | FIPL-WP-500 | FIPL-WP-700 | FIPL-WP-800 | FIPL-WP-1000 |
| Load capacity (kg) | 350 | 500 | 700 | 800 | 1000 |
| Max lifting height (mm) | 1300 | 900 | 1500 | 1000 | 1700 |
| Min lower height (mm) | 350 | 300 | 465 | 420 | 500 |
| Self weight (kg) | 105 | 83 | 150 | 150 | 255 |
| Dimensions of table (mm) | 815x500x50 | 810x500x50 | 1210x610x65 | 1000x510x65 | 1210x610x75 |
| Overall dimensions (mm) | 1250x510x960 | 1130x500x970 | 1380x610x1000 | 1380x610x1000 | 1380x610x1000 |
| Packing size (mm) | 1015x515x370 | 925x515x320 | 1380x610x500 | 1380x610x500 | 1380x610x530 |
| Operating |
Manual Foot Pump
|
Manual Foot Pump
|
Manual Foot Pump
|
Manual Foot Pump
|
Manual Foot Pump
|
